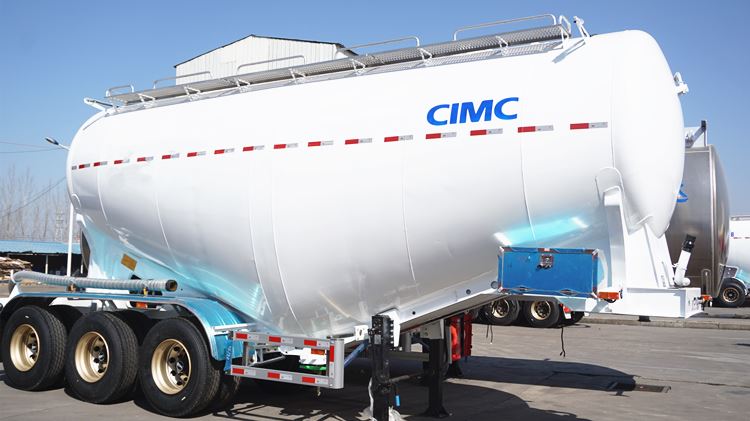

3 Axle Cement Bulker Trailer

3 Axle Cement Bulker Trailer Product Description:

The CIMC 3 Axle Cement Bulker Trailer is a special vehicle for bulk cement transportation of large quantities of dust materials, and the volume is generally between 35-45 cubic meters. The semi-hanging powder material transport vehicle uses its own engine power to drive the vehicle-mounted air compressor through a power take-off, and sends compressed air to the air chamber at the lower part of the sealed tank through a pipeline, so that the cement on the fluidized bed is suspended into a fluid state when the pressure in the tank reaches the rated value, the discharge butterfly valve is opened, and the fluidized cement flows through the pipeline for transportation.

Specification:

Brand: CIMC Cement Bulker Trailer

Total Volume (m3): 25 cbm ~60 cbm

Tanker Body Material: 5mm or 6mm/ high strength wear-resistance steel

Diesel Engine: WEICHAI 4105 Brand

Compressor: BOHAI, FUDA 12m3/14 m3or other brands

Manhole Cover: Carbon steel or Aluminum 500mm(Diameter)

Discharging Valve: Diameter is 3 or 4 inch

Main Beams: Welded design, High Strength Steel

Axle: 3 axles, 14 ton

Suspension: Mechanical suspension
