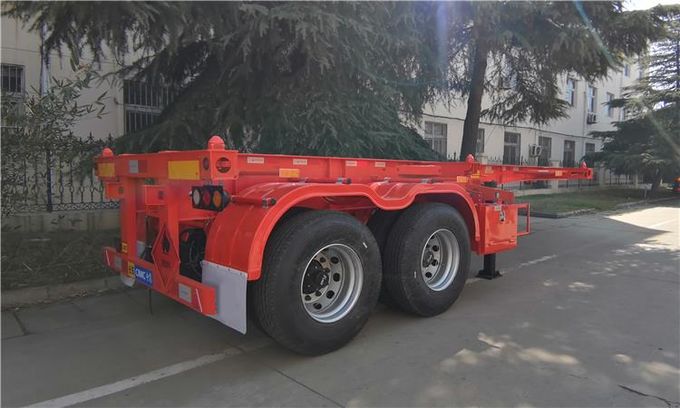

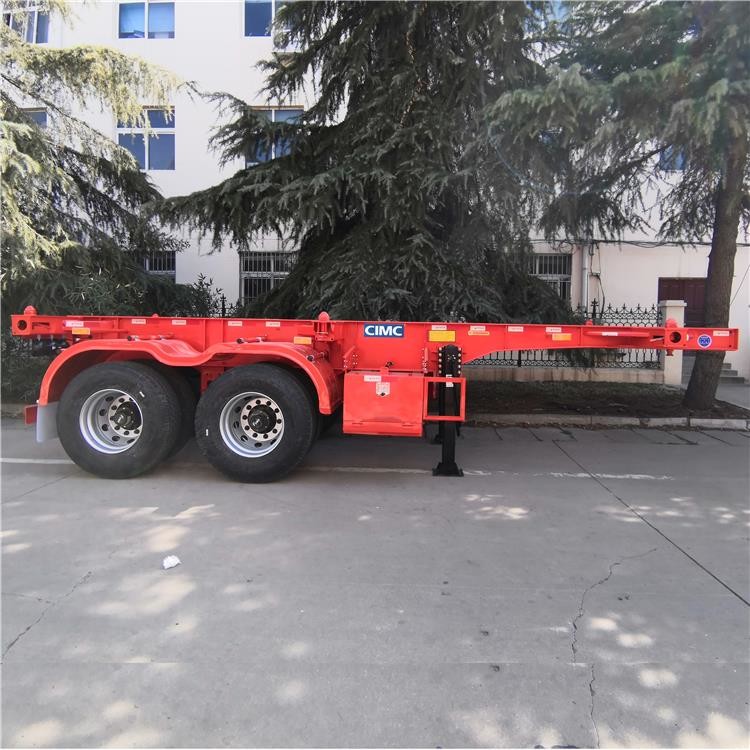

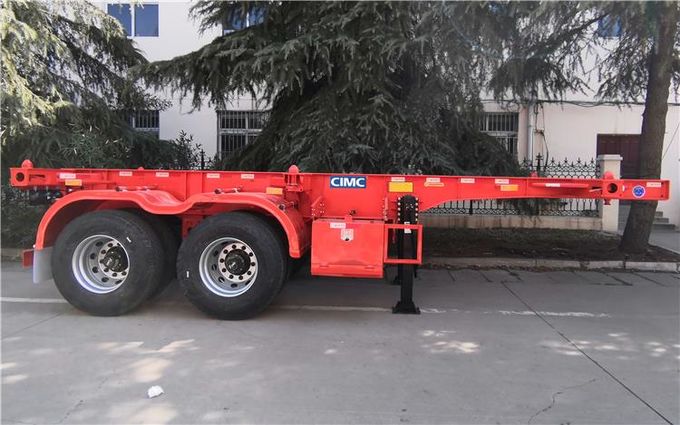

Skeleton Semi 2 Axle 20Ft Container Chassis Trailer

Skeleton Semi 2 Axle 20Ft Container Chassis Trailer

Skeletal trailer Description:

Container chassis trailer includes 20, 40, 45 foot and other types. It is dedicated to transporting containers. It contains two kinds of skeletal trailer for long distance transportation and terminal trailer for port transportation.

CIMC Skeletal trailer is a wheeled structure designed to carry marine containers for the purpose of truck movement between terminals and shipping facilities.

CIMC container moving trailer can be divided into two types: common skeleton trailer and special container transport trailer. CIMC skeletal trailer can be customized to 20/40/45/53 feet. We also provide customers with different options: 2 axles, 3 axles, 4 axles, airbag suspension, spring steel suspension.

Many customers use the method of container transportation, which has low transportation cost and short transportation time.

Some customers choose bulk carriers or ro-ro ships. Before the container trailers is shipped, the vehicle is sprayed with wax and covered with a tarpaulin.

Specification:

Type: Skeletal trailer

Overall dimensios: 6200x2500x1550 mm

Loading weight: 30/40t

Container twist lock: 8/12 pcs

Main beam: Q345B steel

Side beam: 16 U shaped steel or I shaped steel

Axle brand: FUWA/BPW/CIMC brand

Traction pin: 2” or 3.5”

Landing gear: JOST brand optional

Suspension system: Mechanical suspension, air suspension is optional

Tire: 12.00R22.5 Triangle brand tires, others tires optional

Brake: 6 big chamber brake system

Tool box: 1 unit

Side marker lamp: LED type

Voltage: 24V

Feature:

1. CIMC skeletal trailer was built on designing and manufacturing the lightest, strongest, and most durable Container Chassis price skeleton trailer in the industry.

2. Container skeletal trailer different models, our container chassis are designed to haul a variety of sizes including but not limited to 20', 30’,40', 45', 48' We offer 2 axle, tri-axle and terminal trailer models with a variety of options.

3. CIMC trailer skeleton uses a specially engineered high strength frame to reduce tare weight, increase payload, and lower operation maintenance.

4. CIMC uses the most advanced laser and plasma equipment available as well as the latest techniques in fixtures.

5. A 20ft skeletal trailer for sale can carry one 20 foot container, the loading capacity between 40 tons to 60 tons.

6.The bogie suspension is to reduce the common leaf spring front and rear brackets to a single bracket connected to the container skeletal trailer body. Compared with ordinary leaf spring suspension, the bearing capacity of bogie suspension is bigger.
