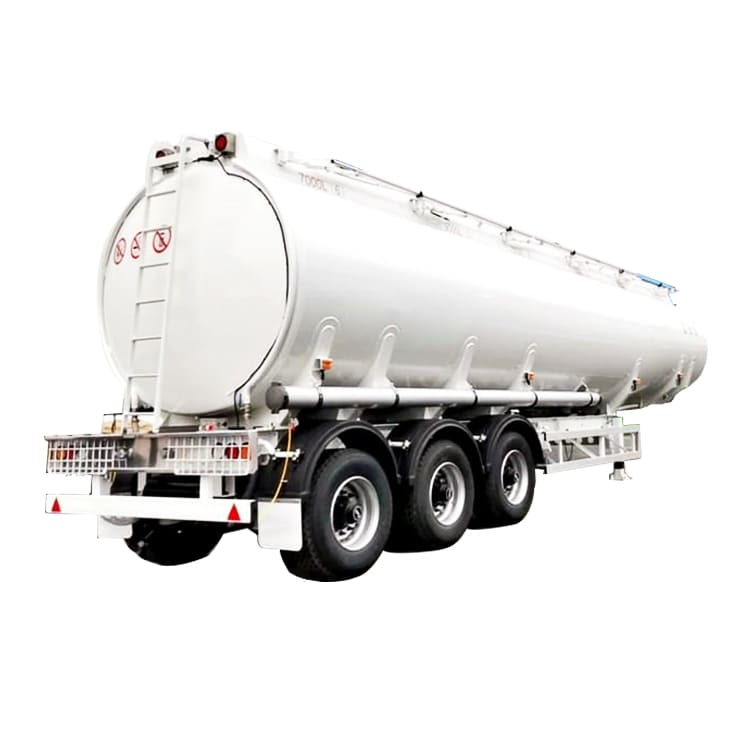

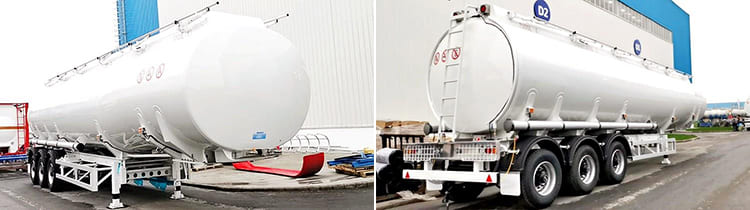

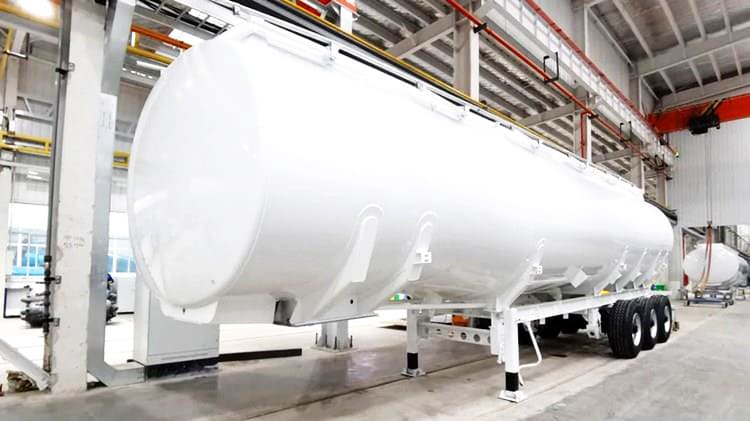

CIMC Tri Axle 42000 Liters Oil Tanker Truck Trailer axles can be Fuwa / BPW with different tonnages by your need with price differences. CIMC Tri Axle 42000 Liters Oil Tanker Truck Trailer is used for liquid cargo transportation, such as Gasoline, Diesel oil, Crude oil, Lubricating oil and other liquid cargo.
Tri Axle 42000 Liters Oil Tanker Truck Trailer is designed for transportation and temporary storage of liquids (petroleum products), bulk cargo, liquefied gases.
Tri Axle 42000 Liters Oil Tanker Truck Trailer adopts longitudinal welding technology to reduce the number of weld seams of the tank and improve the overall firmness of the tank by more than 20%
Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)
Volume: 42000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
