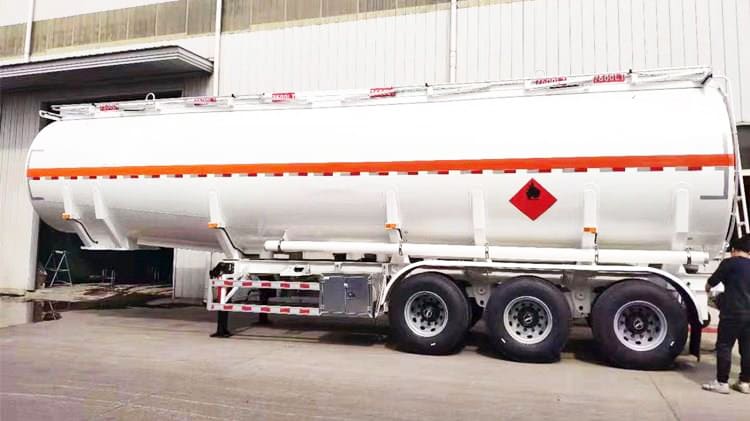

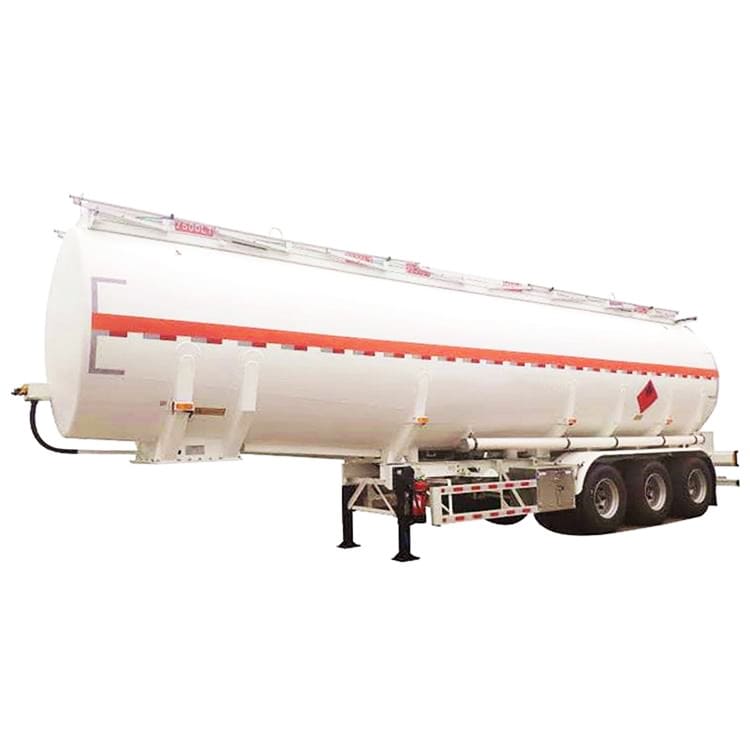

To make sure the secuirty, the CIMC 3 Axle 38000L Fuel Tank Semi Trailer adopts the bottom emergency valves. This can help the tankers to prevent oil leakage when an emergency happens.
3 Axle 38000L Fuel Tank Semi Trailer is adopted advanced fully automatic seamless welding, 100% pass liquid penetration testing, air pressure testing, flaw detection and other stringent requirements, and issue a formal testing report.
Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)
Volume: 38000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
