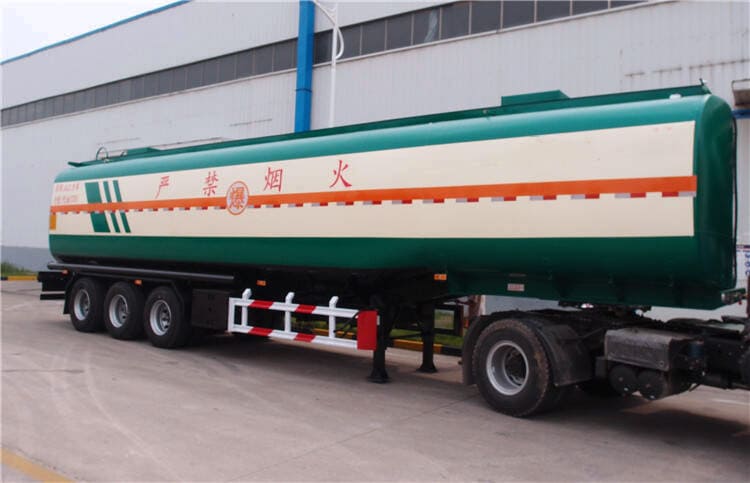

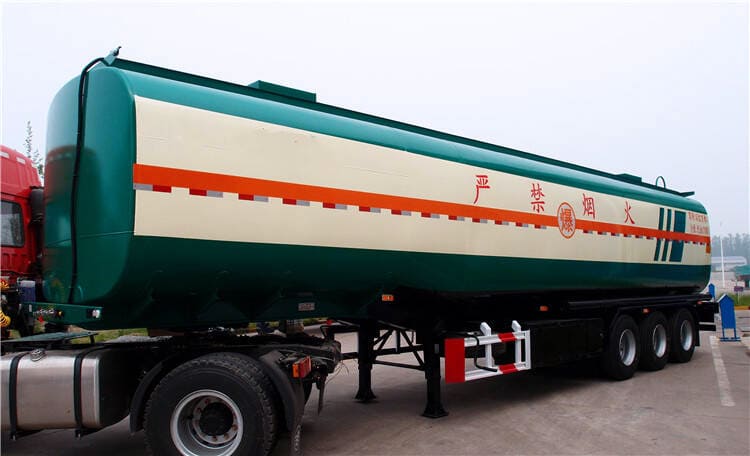

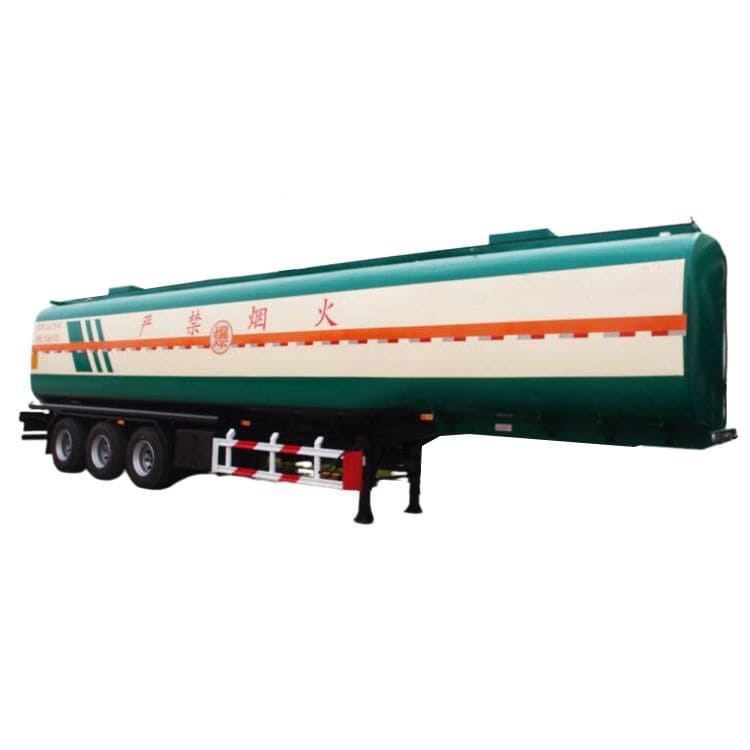

CIMC 38000 Ltrs Gas Tanker Trailer uses Q345 low-carbon alloy steel to make the stronger tank body, the thickness of the steel material is 6 mm.
CIMC 38000 Ltrs Gas Tanker Trailer is using the most advanced welding technology, through single-side welding double-sided forming welding, welding is more solid and smooth,without defects, absolutely will not appear the phenomenon of welding opening, the tank body can be used for more than 10 years.
Dimension: 11600mm*2500mm*3900mm
Volume: 38000liters
Application: transport Fuel, Oil, Diesel
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carbon steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Axles: 3 units, FUWA/BPW/CIMC/other
Tire: 12 units, Brand can be optional
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension
Brake System: WABCO
