Tri Axle Flatbed Tractor Trailer
Tri Axle Flatbed Tractor Trailer

Tri Axle Flatbed Tractor Trailer

Trailer: CIMC tri axle flatbed tractor trailer for sale

Load capacity: 40ton to 60ton

Working platform length: 40ft

Application: carry 20ft or 40ft container

Advantage: customized produce

Product Description:

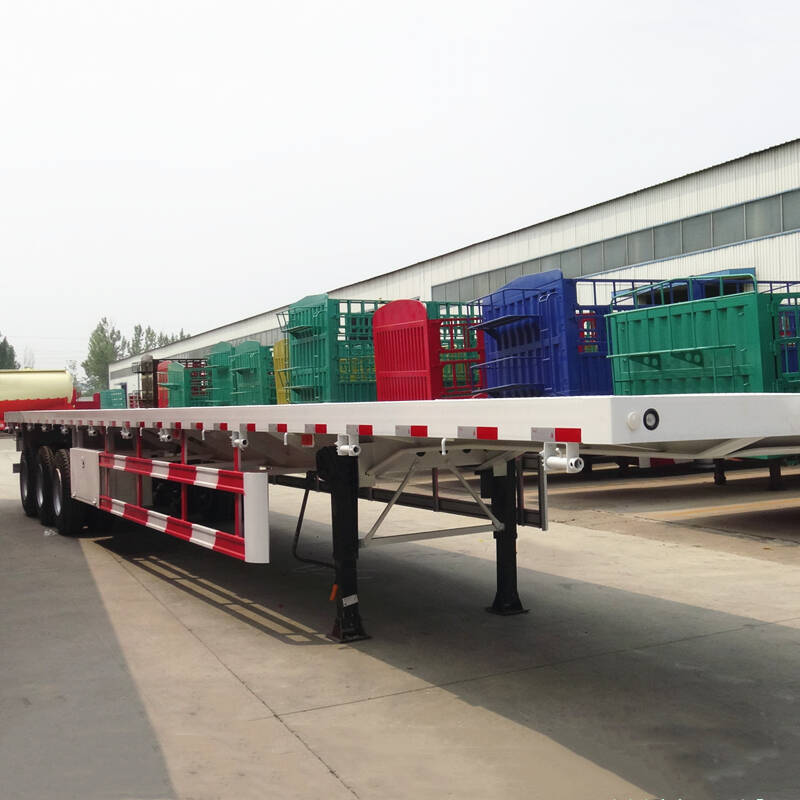

CIMC tri axle flatbed tractor trailer for carrying 40ft container, 20ft container and bulk cargo.

Flatbed manufacturers CIMC brand tri axle flatbed tractor trailer with the feature of light tare weight, large loading capacity, durable performance. It's widely exported to South-east Asia, Middle-east, and Africa market.

All spare parts used by CIMC are world famous brands to ensure the service life of flatbed trailers.

Tri Axle Flatbed Tractor Trailer for Sale in Mauritania - CIMC Trailers

Tri Axle Flatbed Tractor Trailer for Sale in Mauritania - CIMC Trailers

Tri Axle Flatbed Tractor Trailer for Sale in Mauritania - CIMC Trailers



Specification:

Overall L*W*H: 12,500×2,500×1,530 mm

Payload: 60 tons

Axles: 13 tons / 14 tons / 15 tons /16tons / 20 tons ( Fuwa/BPW /CIMC or other Chinese famous brand )

Tire: 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Mechanical / airbag / bogie suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve

Container lock: 12 pcs

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Accessories: Tool box , spare tire carrier



Loading containers:

Before the high bed semi trailer are loaded into the container, the used turn lock head should be completely overlapped with the lock seat and fixed. Then the container is correctly placed on the semi trailer, and then the turn lock handle is turned lock the container vertically with the lock head and the lock seat.

Before unloading the container, the turn lock should be turned to the position where the lock head overlaps with the lock seat and fixed, and the container can be removed only after it is confirmed that the container is not locked.
