CIMC 40ft Flatbed Semi Trailer for Sale in Namibia

This customer from Namibia bought five 40ft flatbed semi trailers. This customer is relatively young and has previously engaged in transportation-related work, and now plans to be the boss to do it alone. This customer has known CIMC brand semi-trailers before and has seen CIMC brand semi-trailers locally, so this time he directly chose to purchase CIMC 40ft flatbed semi trailer. The customer's import procurement experience is quite rich, but he is worried that this large vehicle will be damaged during transportation. Our sales have also talked with customers about many issues related to cargo transportation, hoping that customers can receive the semi-trailer smoothly.

CIMC 40ft 3 Axle Flatbed Semi Trailer for Sale

Flatbed trailer is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport. Flatbed trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers. Most customers use container shipment, which has low transportation cost and short transportation time. TITAN flatbed trailer can be customized according to the different requirements of customers in different countries.

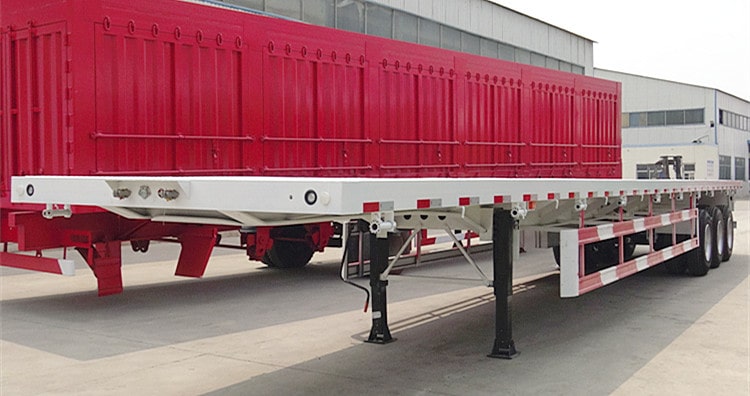

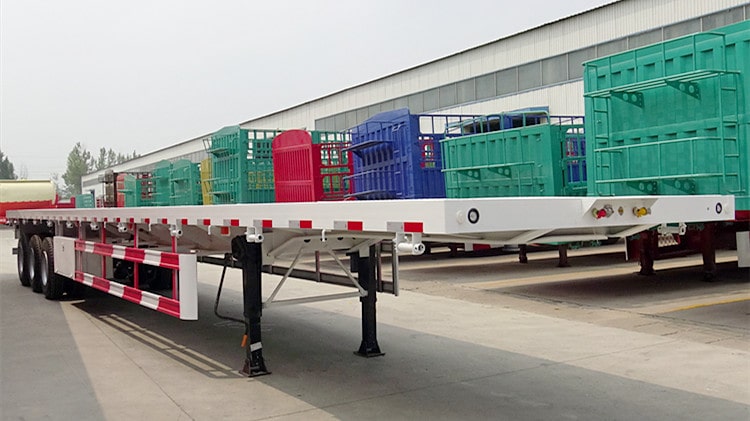

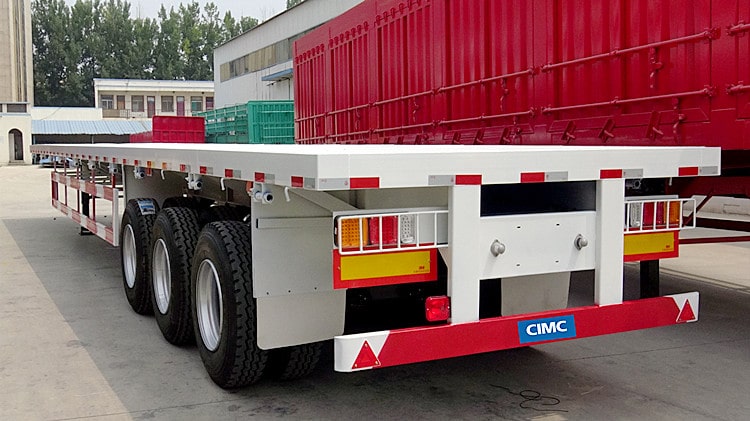

CIMC 40ft Flatbed Semi Trailer for Sale

Connection work between overhead semi-trailer and truck head

1. In order to connect the traction pin and the traction seat smoothly, the semi-trailer should be in an air-off state.

2. Raise the cantilever bracket so that the flatbed semi trailer traction pin seat plate is about 10-13 mm lower than the center position of the truck traction seat. Otherwise, sometimes not only can not connect, but also damage the traction seat, traction pin and related parts.

3. Open the unlock lever of the traction seat on the forklift, and then open the traction locking mechanism.

4. Rotate the forklift backwards so that the semi-trailer traction pin is guided into the opening of the locking mechanism through the V-shaped opening of the traction seat, and push the locking block to rotate and lock the traction pin.

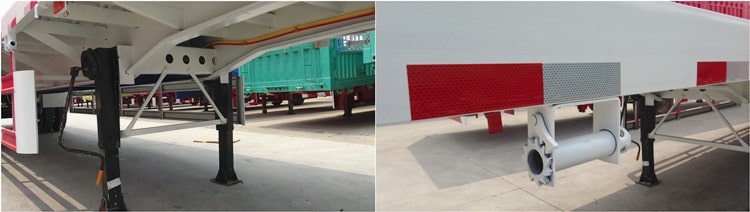

CIMC 40ft Flatbed Semi Trailer Details

When reversing, the center line of the truck head and the semi-trailer should be the same. Generally, the offset between two centerlines is limited to less than 40mm. The angle between the two centerlines is limited to 5° at full load and 7° at no load.

5. Connect the gas circuit (connect the truck's gas supply pipe joint to the 40ft flatbed semi trailer's gas supply pipe joint, and connect the truck's control pipe joint to the 3 axle flatbed semi trailer's control pipe joint), turn on the semi-trailer connection disconnect switch on the truck head to Make the trailer get enough air pressure.

6. Connect the circuit, and then insert the wire connection plug of the forklift head into the wire socket of the semi-trailer.

7. Operate the lifting feet correctly to retract them, then pull down the handle and hang it on the hook.
