Size: 6200*2500*1550mm
Material: Carbon steeel
Suspension: Mechanical / Air / Bogie
King pin: 2"(50mm)or3.5"(90mm) JOST
CIMC container trailer frame is usually made of steel. It can be used to transport containers of various lengths: 20ft, 40ft or 45ft. Container semi trailer has clearly marked positions and twelve sets of container locks are installed to facilitate the fixing of containers of different sizes and ensure their safety at their destination. The skeleton container trailer is specially used for the transportation of various containers such as 20, 40, 45, 48, and 53 feet.
The container moving trailer can meet the individual needs of customers. According to customer needs, we can produce gooseneck type container chassis trailer, tipper chassis trailer, interlink skeletal trailer, etc. The best design scheme has a reasonable structure and reliable operation. Most industries use large containers to transport finished products, so container trailers are required. Containers are still one of the safest ways to transport fragile and sensitive goods.

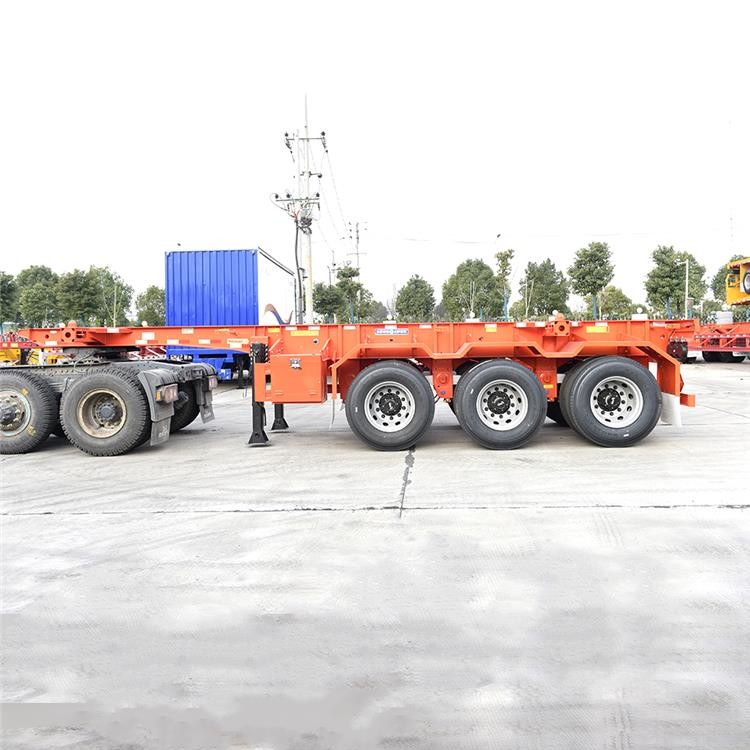

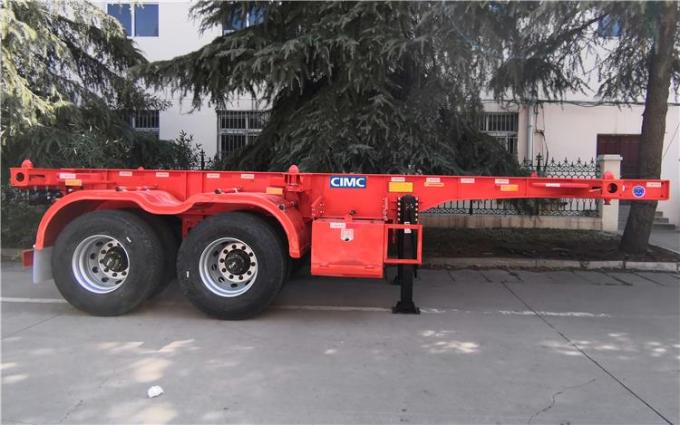

CIMC 20ft container chassis trailer

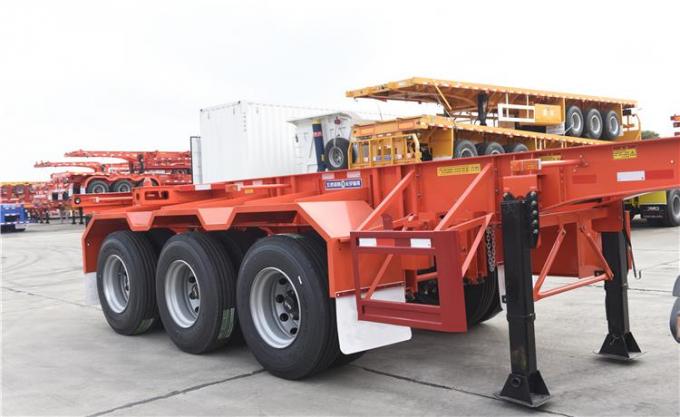

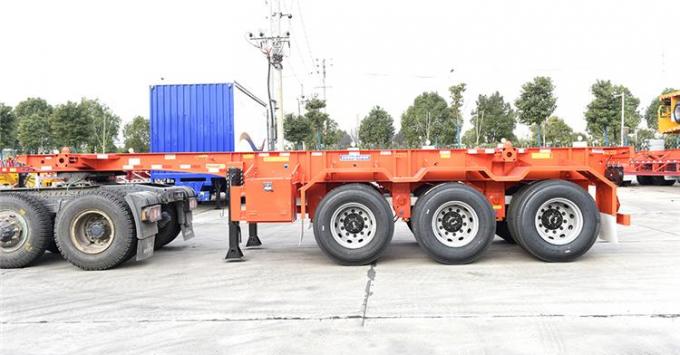

CIMC 20ft container moving trailer
CIMC container chassis for sale near me
1. CIMC container moving trailer use better parts, such as 16 ton brake system axle, 3mm base plate, etc. with longer service life.
2. The main beam’s gooseneck lower vertical plate is reinforced, and the gooseneck double-layer girder vertical plate.
3. Polyurethane paint, high adhesion, high chroma, beautiful color.
4. The suspension is reinforced at the front and rear, left and right.
5. The sea container trailer brake gas pipe of CIMC container semi trailer adopts high-pressure rubber gas pipe, with a service life of more than 10 years.
6. The whole container trailers adopts LED lamps and lanterns, and a set of tail lamps and side lamps will be presented when the goods are delivered.
Type | Container trailers |
Overall dimensios | 6200x2500x1550 mm |
Loading weight | 30ton |
Container twist lock | 8/12 pcs |
Main beam | Q345B steel |
Side beam | 16 U shaped steel or I shaped steel |
Axle brand | FUWA/BPW/CIMC brand |
Traction pin | 2” or 3.5” |
Landing gear | JOST brand optional |
Suspension system | Mechanical suspension, air suspension is optional |
Tire | 12.00R22.5 Triangle brand tires, others tires optional |
Brake | 6 big chamber brake system |
Tool box | 1 unit |
Side marker lamp | LED type |
Voltage | 24V |
