Size: 12500*2500 *1530mm
Suspension: Mechanical / Air / Bogie
King pin: 2"(50mm)or3.5"(90mm) JOST
Landing gear: JOST
CIMC skel trailer can be equipped with a double tow pin structure, which can be used to transport 45-foot standard containers and front probe boxes. An optional lock beam can be installed in the middle to stabilize the container; this truck has the characteristics of low bearing surface, light weight, high reliability and strong applicability.
Container chassis lock frame structure and the corresponding parts of the front lock beam are strengthened to effectively prevent the front anti-skid lock frame and the front lock beam from tearing. Robustness and safety are further guaranteed.

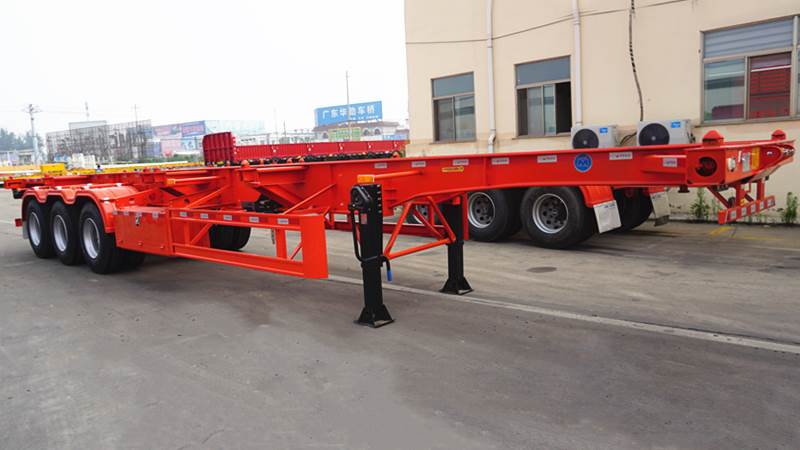

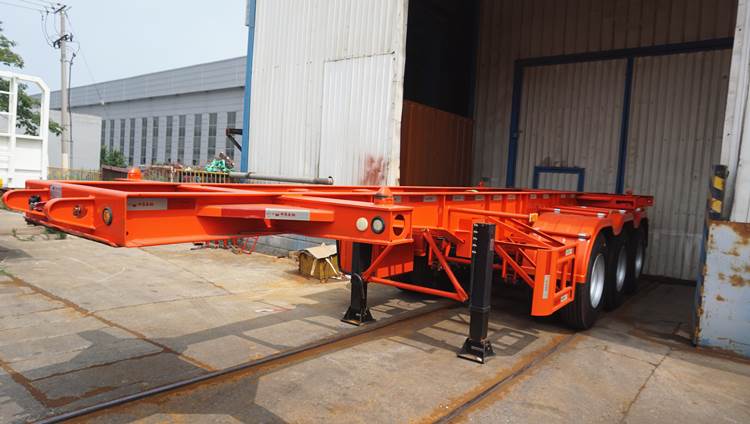

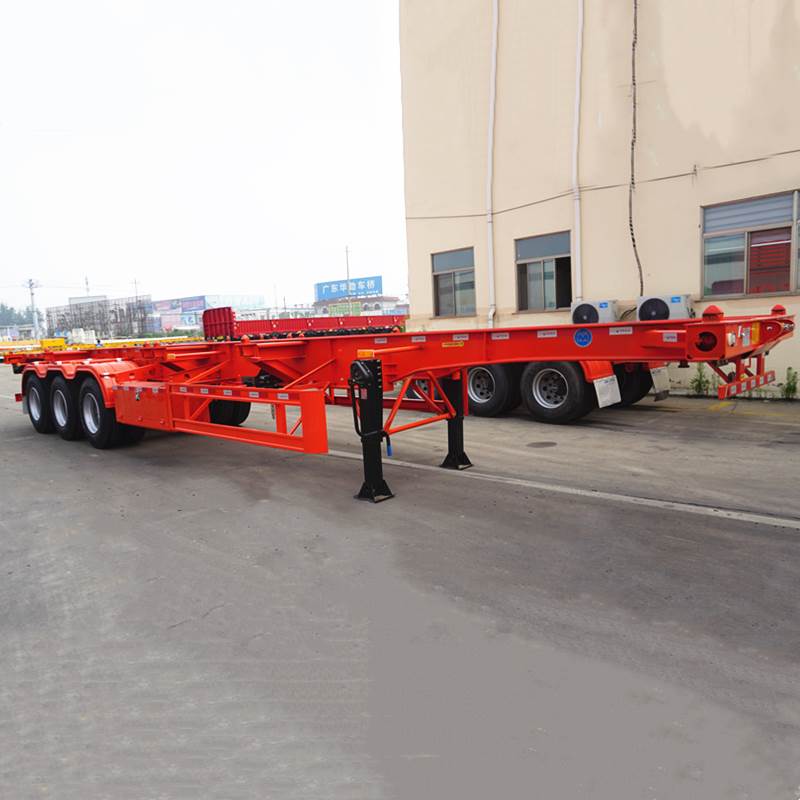

CIMC 3 axle container chassis trailer
CIMC container chassis for sale near me
CIMC 40ft contaienr skel trailer
| Type | Skel trailer |
| Overall dimensios | 12500*2500 *1530mm |
| Loading weight | 60 ton |
| Container twist lock | 8/12 pcs |
| Main beam | Q345B steel |
| Side beam | 16 U shaped steel or I shaped steel |
| Axle brand | FUWA/BPW/CIMC brand |
| Traction pin | 2” or 3.5” |
| Landing gear | JOST brand optional |
| Suspension system | Mechanical suspension, air suspension is optional |
| Tire | 12.00R22.5 Triangle brand tires, others tires optional |
| Brake | 6 big chamber brake system |
| Tool box | 1 unit |
| Side marker lamp | LED type |
| Voltage | 24V |
Your choice first depends on your preference for the type of work you need to accomplish. Usually, the selection is based on the following conditions:
Application
If you use a container chassis trailer to transport not only containers but also some other goods, it is best to choose the type of flatbed trailer. Choose according to your needs, you can let professionals provide you with buying advice.
Axle
All these skel trailers can carry considerable weight. The greater the number of axles, the greater the carrying capacity.
Price
Cost is also an important factor to consider when choosing a trailer. Ordinary trailers have many uses and reasonable prices.
