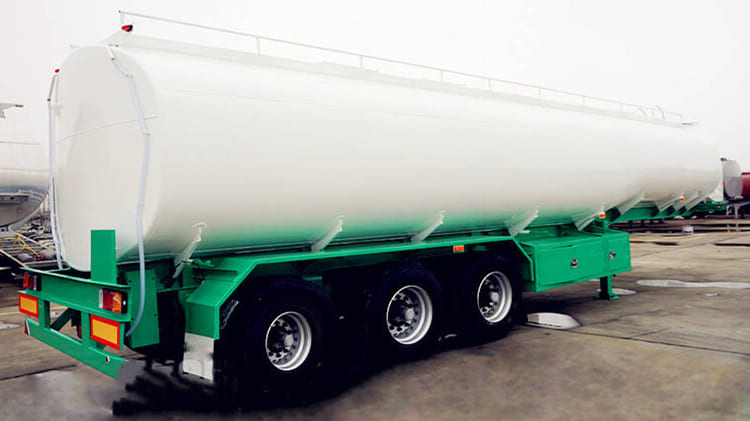

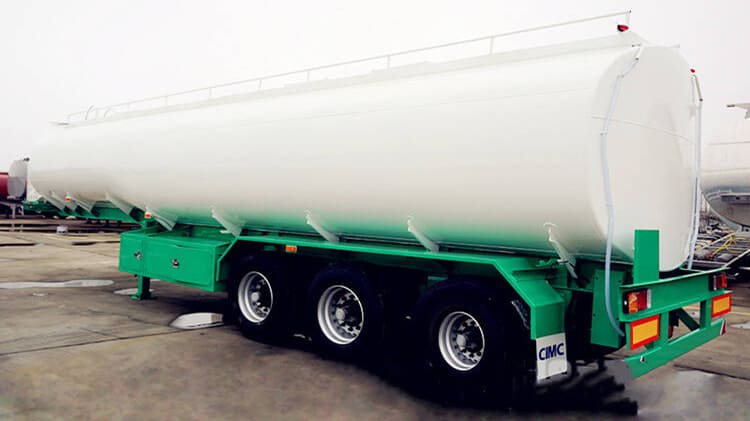

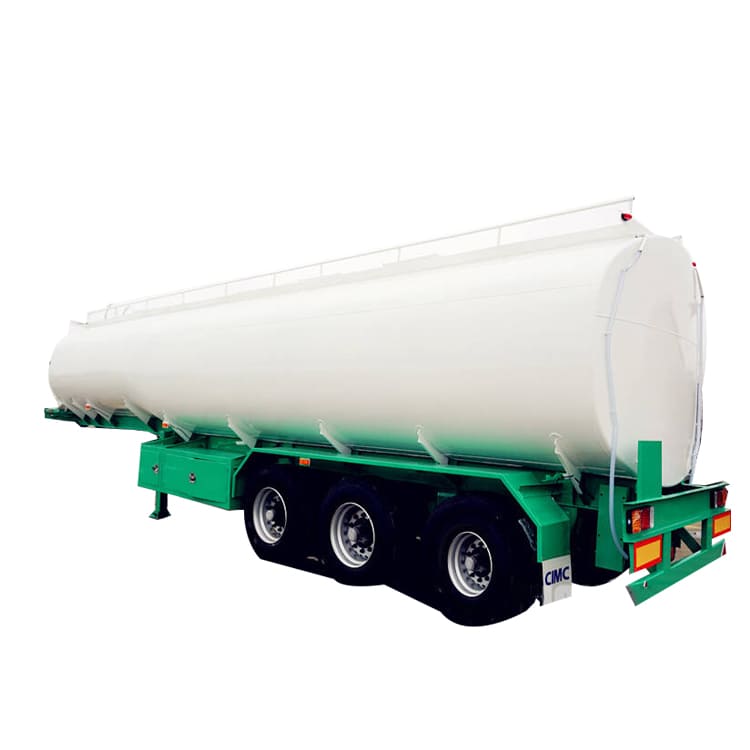

The volume varies of 3 Axle 40000L Fuel tanker trailer widely from 10 cube meters to 70 cube meters, we can manufacture it according to your needs. The suspensions can be Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
3 Axle 40000L Fuel Tanker Trailer is installed at the bottom of the tank, it can replace the traditional top-loading refueling for bottom-loading refueling, making the operation easier, time-saving, safe and environmentally friendly for the staff.
Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)
Volume: 40000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
