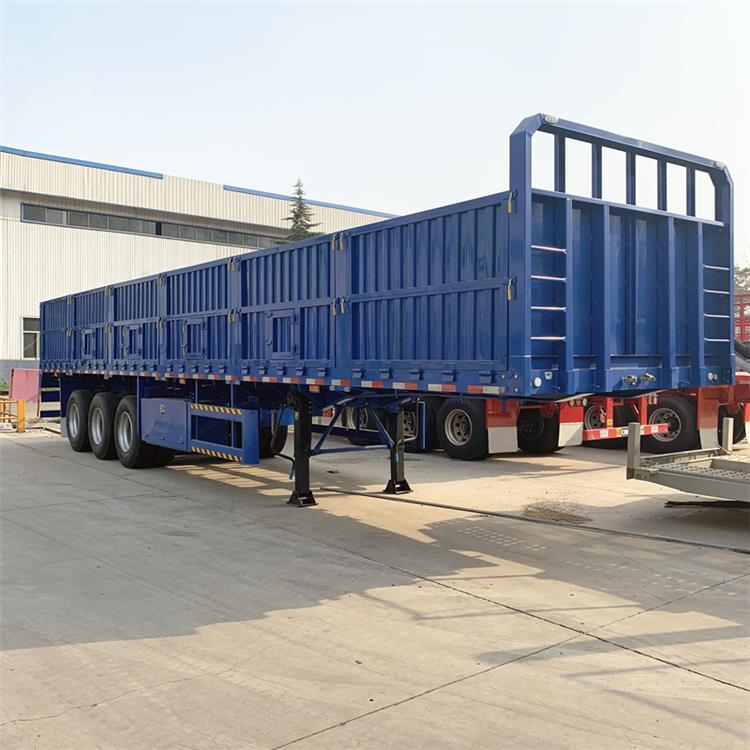

60T China Side Wall Trailer

Product Description:

3 axle sidewall trailer developed on the basis of a container flatbed trailer, the drop side trailer has a side wall structure design.

This sidewall cargo semi trailer is widely used in the logistics. It could be used to carry the bagged grain, cement, steel or other kinds of bulk goods. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.

CIMC sidewall trailer can be customized according to customer needs.

Different options: 2 axles, 3 axles, 4 axles. 30T, 40T, 50T, 60T. Airbag suspension, spring steel suspension.

Cargo Logistics 3 Axle 60T China Side Wall Semi Trailer for Sale

Specification:

L*W: 12500mm*2500mm

Sidewall Height: 1000mm

Max. Payload: <60T

Application: Coal/Cargo/Containers Loading

Material: Q345B Steel

Bottom Platform: 3mm-thick checkered plate

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Support leg: JOST brand

Suspension: Airbag / Mechanical / bogie suspension

Axles: FUWA/BPW/CIMC/other

Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)

Brake System: WABCO

Electrical System: 24-volt lighting system

Light: LED light (specially intended for oversea market)

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
