Price: 17000 USD

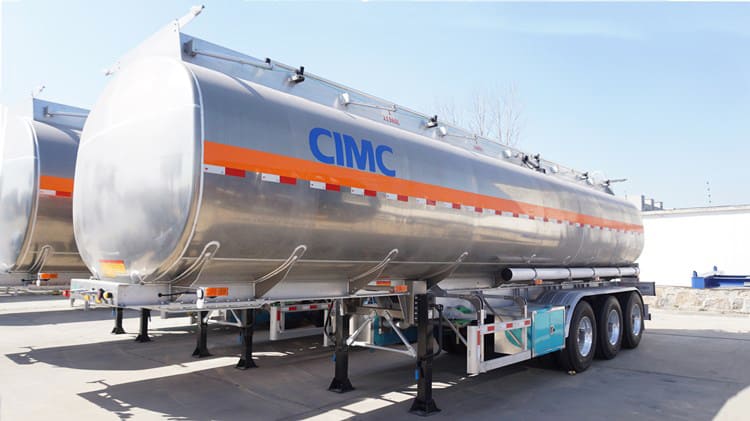

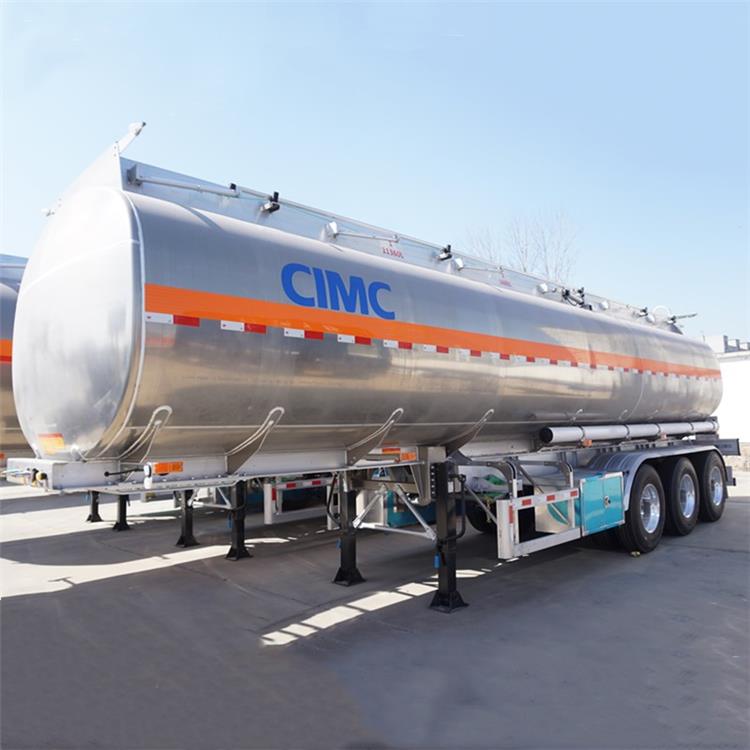

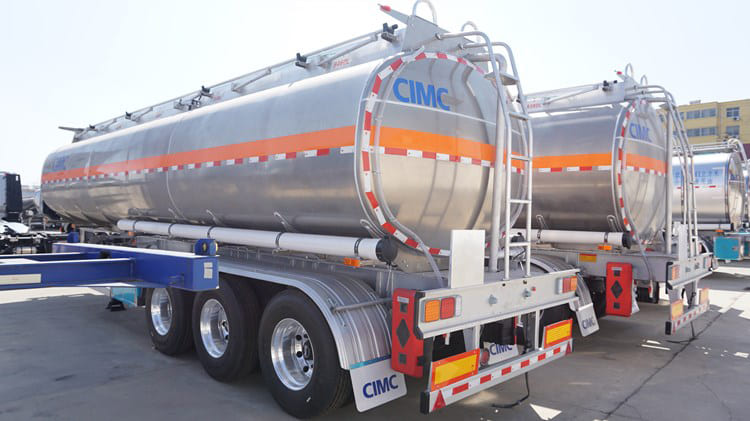

CIMC 3 axles aluminum tankers semi trailer can reach 90000 liters and 4 axle. The 3 axles aluminum tankers semi trialer can provide 1-7 cabins of tanker trailers
CIMC mainly provides different types of Aluminum Tankers Semi Trailer for the transport of fuel, diesel, water and any other liquid materials, one of which is the type of Monoblock Trailer.
CIMC pays attention to the quality of 3 axles aluminum tankers semi trailer, the liquid will produce great tension and impact in the course of transportation, so the CIMC Monoblock Trailer must be thick and solid, welded joints without defects, our Aluminum Tanker Trailer thickness is up to 6mm.
Aluminum Tankers for sale | Aluminum Semi Trailers for Sale in Costa Rica
Aluminum Tankers for sale | Aluminum Semi Trailers for Sale in Costa Rica
Aluminum Tankers for sale | Aluminum Semi Trailers for Sale in Costa Rica
Dimension: 11000mm*2500mm*3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 50000 litres
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Aluminum steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

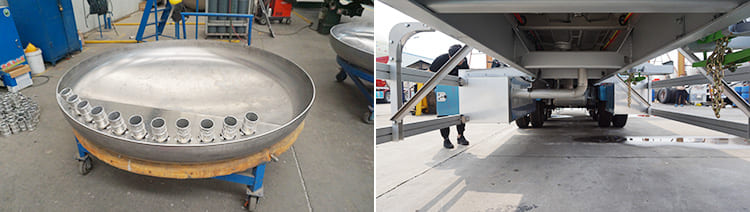

2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. The CIMC tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
6. The waved board reduces the impact of the liquid on the tanker.
7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.
