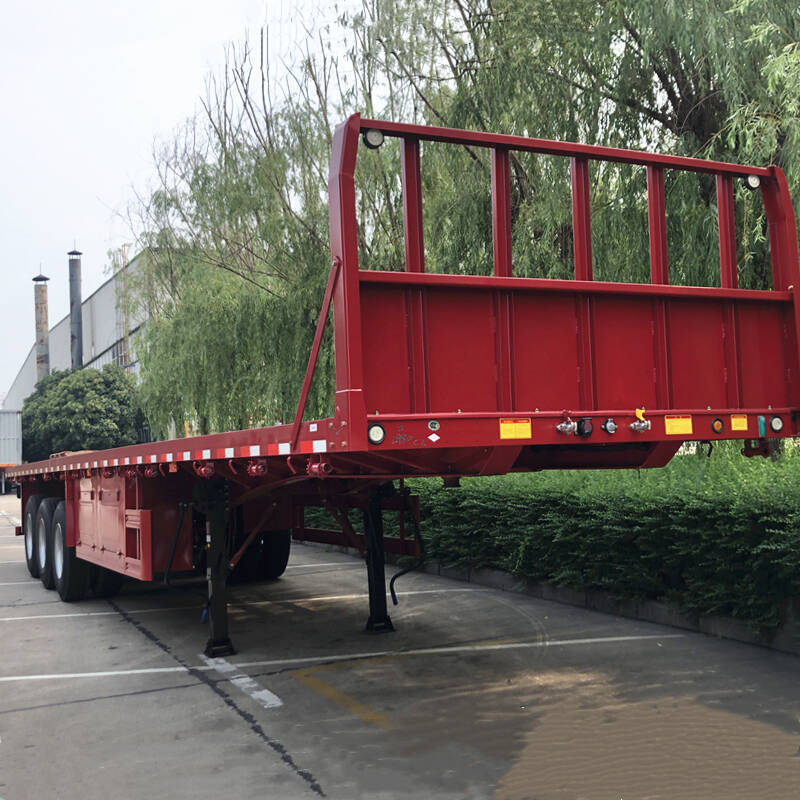

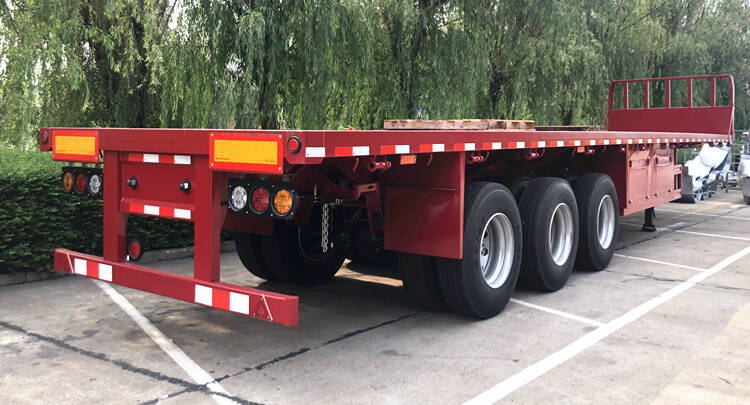

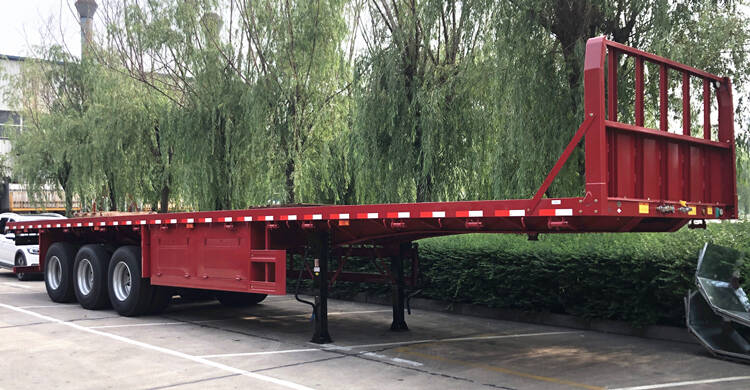

Flatbed Semi Trailer with Front Wall

Product Description:

CIMC 3 axle flatbed trailer with front wall is another commonly used type of equipment in the transportation industry. It is equipped with side boards , container locks. So that, the high bed trailer could do the task of containers , pipe , steel , bagged cement or breakbulk.

CIMC produces the high quality flatbed for sale for carrying 40ft container, 20ft container and bulk cargo. the high bed trailer with removable sides can carry loads from 40 ton to 60 ton machnies and cargos. CIMC high bed trailer also called flatbed trailer with sidewalls. CIMC high bed trailer is noted for their highly robust structure steel, we can provide difference configurations of our flatbed for Sale to meet your transportation requirement.

CIMC Flatbed Semi Trailer with Front Wall for Sale in Guinea

Specification:

Overall L*W*H: 12,500×2,500×1,530 mm

Payload: 60 tons

Axles: 13 tons / 14 tons / 15 tons /16tons / 20 tons ( Fuwa/BPW /CIMC or other Chinese famous brand )

Tire: 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Mechanical / airbag / bogie suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve

Container lock: 12 pcs

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Accessories: Tool box , spare tire carrier
