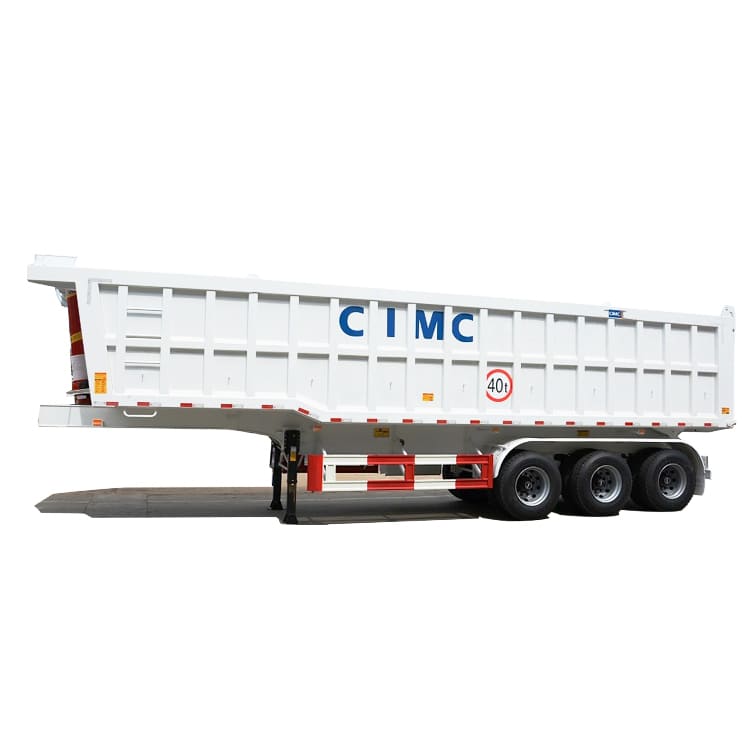

CIMC 3 Axles 60 Ton Tractor Tipper Trailer

3 Axles 60 Ton Tractor Tipper Trailer Description:

The loading capacity of 3 axle 60 ton tractor tipper trailer is 60 Tons. It is mainly used for transporting the sand or small stones or rocks. We also have the 2 axles, 3 axles, 4 axles tractor tipper trailers. The color could be painted as your request.

If you are looking for the other kinds of semi-trailers, we also specialize in producing flatbed, fuel tank, lowbed trailer etc..

3 Axles 60 Ton Tractor Tipper Trailer for Sale with Lower Price Near Me Manufacturers

3 Axles 60 Ton Tractor Tipper Trailer for Sale with Lower Price Near Me Manufacturers

3 Axles 60 Ton Tractor Tipper Trailer Specification:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 60 Ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

3 Axles 60 Ton Tractor Tipper Trailer Advantages:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

5. The leaf spring is widened and thickened, the shock absorption effect is good.
