Size: 11000mm*2500mm*3700mm
Material: Stainless Steel
Suspension: Mechanical Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST
Fuel tanker trailers are mainly used for transport liquid and oil. CIMC Oil Tanker Trailer For Sale In Zimbabwe is generally made of carbon steel sheet, and it can also be made of aluminum alloy, stainless steel, polyethylene and other materials.
After the production of the oil tank truck trailer is completed, it must be inspected in the inspection room to check whether the tank has defects (impurities, etc.) to prevent potential safety hazards.
Water injection experiment: to ensure the high sealed of tank body and avoid the leaks oil
Air pressure detection: to ensure that the oil and gas will not volatilize under high temperature, and to ensure the safety of the vehicle while driving and parking.

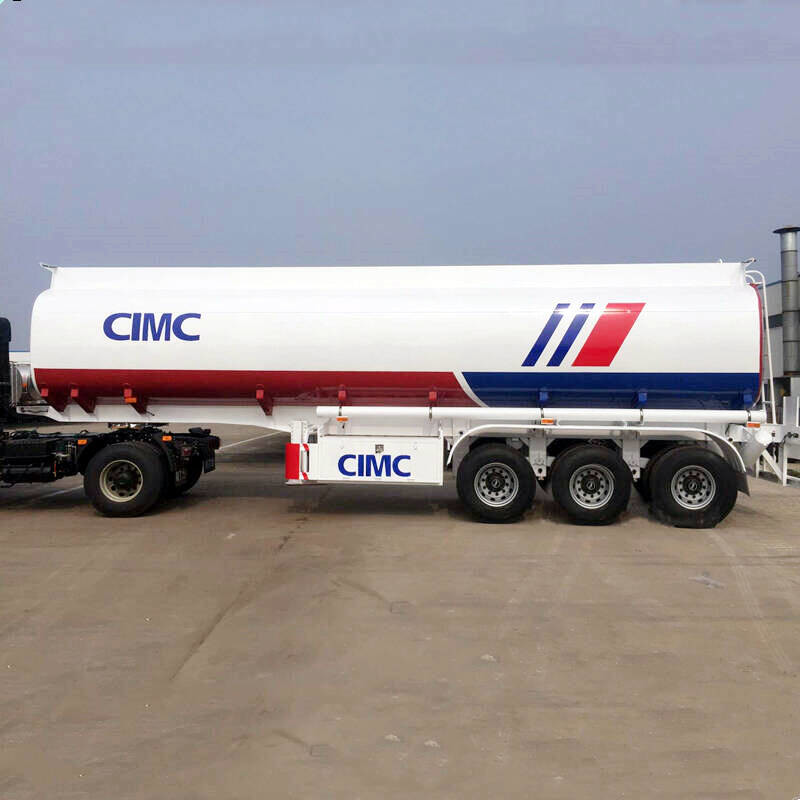

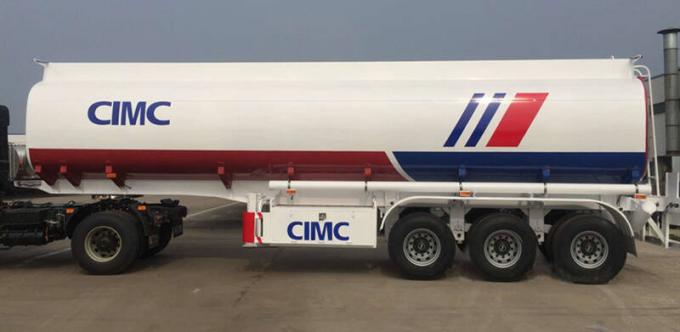

CIMC 42000 liters 3 axle fuel tanker trailer for sale
| Dimension | 11000mm*2500mm*3700mm |
| Volume | 40000liters |
| Application | transport Fuel, Oil, Diesel |
| Tank Body | |
| Material | Stainless Steel road tanker |
| Tank body and separate compartment plate | 6mm |
| Compartments | 1 to 7 compartments, based on customer needs |
| Manhole cover | Carton steel or Aluminum alloy API manhole cover 500mm (diameter) |
| Discharge valve | Diameter is 3 or 4 inch |
| Chassis | |
| Axles | 3 units, FUWA/BPW/CIMC/other |
| Tire | 12 units, Brand can be optional |
| Landing Gear | JOST brand |
| King Pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Suspension | Mechanical suspension or air suspension |
| Brake System | WABCO |
road fuel tankers for sale should have the following basic conditions:
| 1. The relevant certificates such as the vehicle driving license and the hazardous chemicals permit are complete. |
| 2. The actual loading capacity shall not be greater than the approved loading capacity. |
| 3. Equipped with two dry powder fire extinguishers over 4 kg, the location should be reasonable and easy to use. |
| 4. The diesel fuel trailer is qualified by the qualified inspection department. The tank body and accessories are good and effective, with no damage or deformation affecting the strength, no serious corrosion, and no leakage. |
| 5. The tank body must be provided with an electrostatic grounding terminal, and an obvious mark is painted on the terminal; install a conductive rubber towing zone, and keep it on the ground after filling with oil. |
| 6. Install an effective fire cap on the exhaust pipe, and the circuit system should have a device for cutting off the main power supply. |
