Use: Truck Trailer
Function: container side loader
Landing gear: Heavy Duty Landing Gear
Type: 20 ft and 40 ft container side lift

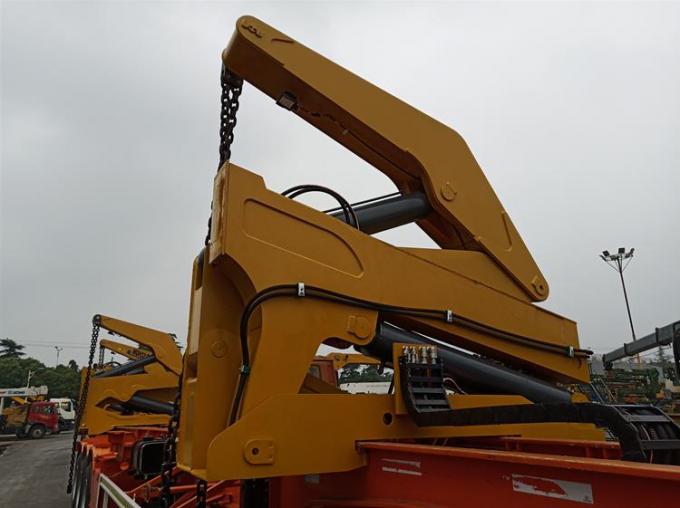

CIMC sidelifter easily adapts to your operations, making it safe and secure, even in rough operations. It can lift the heaviest containers, even badly positioned or with unevenly reparted load inside.
The side lifter container can load containers by itself, and it can also load and unload containers for other container carriers (such as flatbed trailer and skeletal trailer).

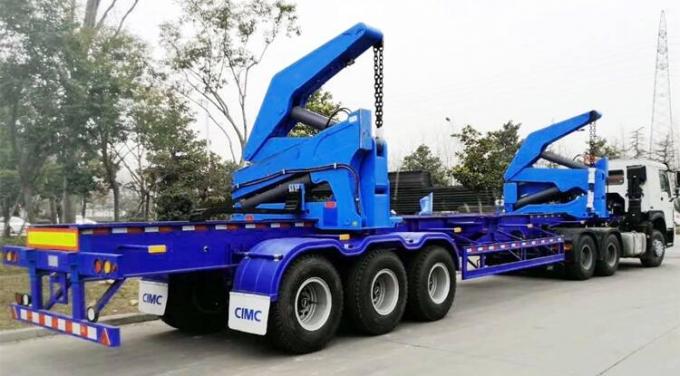

40Ft side loader trailer
side lifter container
side lifter for sale

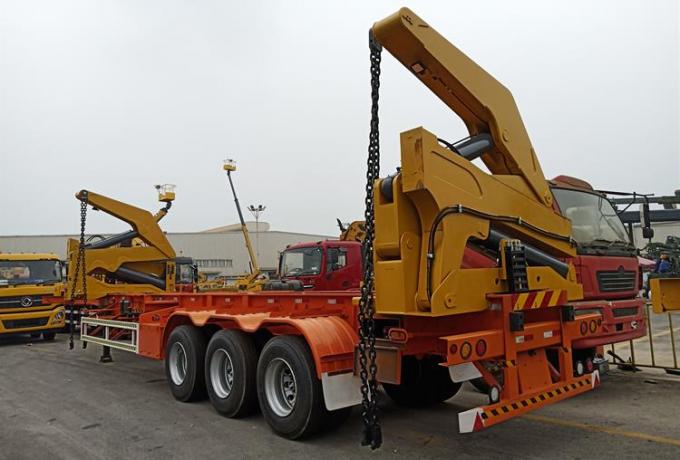

The sidelifter container trailer integrates the functions of container lifting, container unloading, and container transportation.
1.According to different transport chassis, it can be divided into self loader truck and sideloader trailer.
2.According to the different tonnage of lifting, it can be divided into 16 tons, 25 tons, 37 tons, 45 tons of side lifter, of which 37 tons and 45 tons are the best sales.
3.According to the type of transportation container, it is divided into 20ft and 40ft sidelifter container trailer for sale.
To ensure safety, check whether sidelifter is work normally and in accordance with requirements of goods to be lifted before operation. Make sure that the sidelifter is not overloaded. Refer to the sidelifter working range to make sure that the unbalance loading of front and rear does not exceed 10% of that at corresponding working range, and keep container a proper distance of 300mm~500mm from chassis if it is possible.
Overall dimension: | 14100mm*2500mm*4100mm |
Loading capacity : | 50-60ton |
Axles: | 3 axles |
Tire: | 12 units,12R22.5 |
Suspension: | Heavy duty mechanical spring suspension |
King pin: | 90# |
Langing gear: | JOST |
Brake system : | WABCO |
Electical system : | 24V , LED lights |
Power source: | PTO and Japenese Kubota diesel engine |
Tow Chain: | Igus (imported) |
Max.working range: | 4000mm |
Overall height: | 2500mm |
Overall length: |
1020mm |
